ONWA N2K(NMEA2000) and NMEA0183 bidirectional converter, m/WIFI
Bruger til at koble N2K net sammen med NMEA 183 system
Funktioner
- NMEA2000-certificeret
- Konverterer NMEA 0183-sætninger til N2K PGN'er
- Konverterer N2K PGN'er til NMEA0183-sætninger
- Tag strøm fra N2K-netværket, ingen ekstern strømforsyning er nødvendig
- Konfigurerbar NMEA0183 baudrate
- Opto-isoleret på N2K CAN bus
- Opto-isoleret på NMEA0183 input
- Automatisk registrering af NMEA0183 baudrate og understøttede sætninger
- Understøttelse af brændstof flow sensor
- Firmwareopgradering og NMEA0183-output-baudhastighed med pc-software
- Plug and play-installation

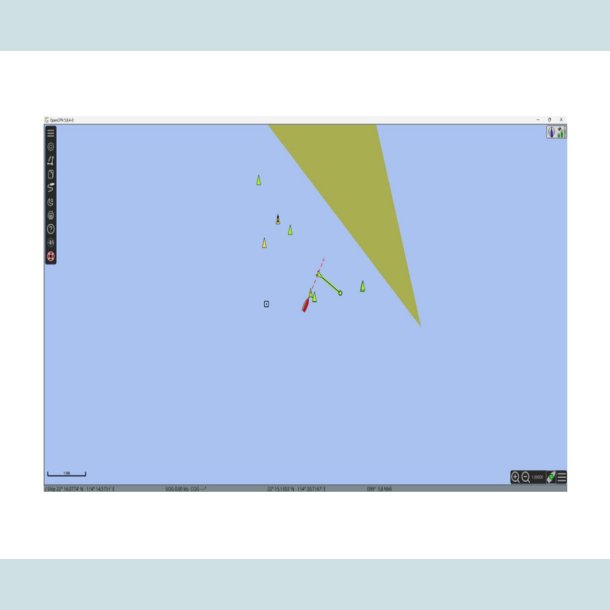

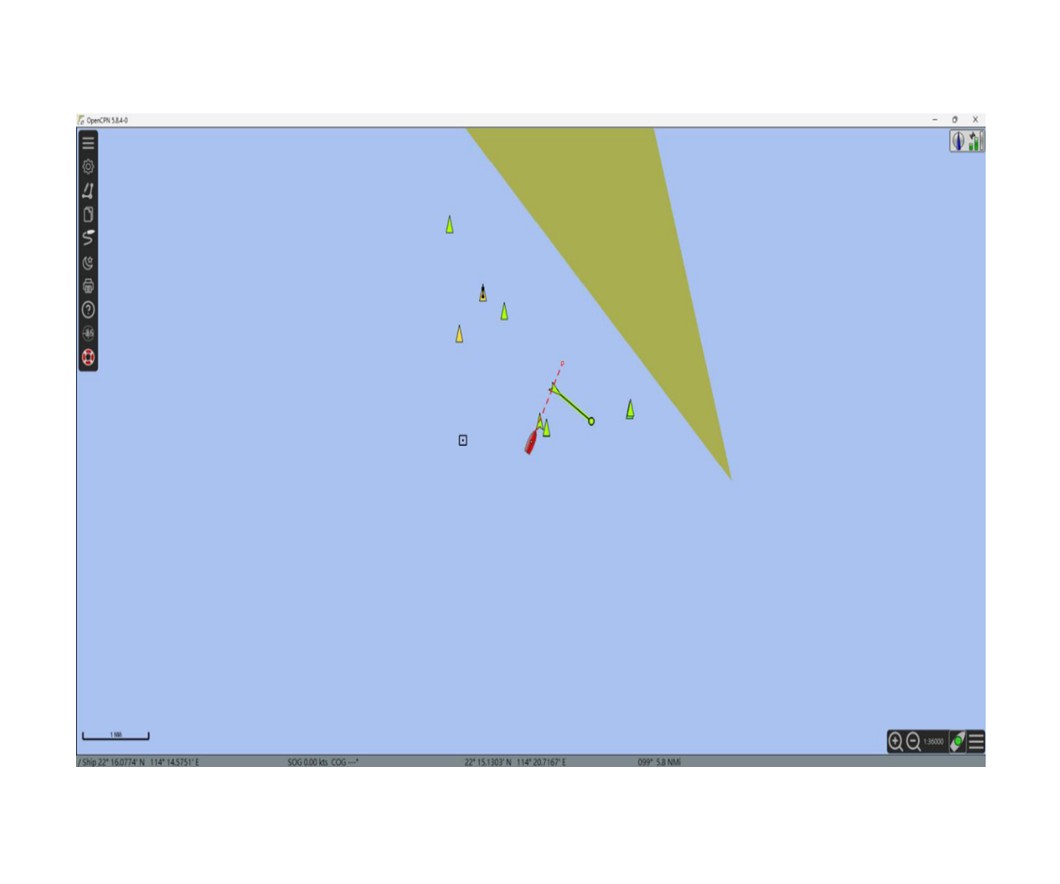

- Netværk via WIFI.
General
Power supply (N2K Port)
Electrical: 9 ~ 30VDC
Current drain: 50mA at 12VDC
Protection: over-voltage, power transient and accidental reverse polarity protection
Current drain: 50mA at 12VDC
Protection: over-voltage, power transient and accidental reverse polarity protection
N2K Port (IEC61162-3)
Supported PGNs: 126992
, 127237, 127245, 127488, 127250 , 127251 , 127258 , 127489, 128259 ,
128267 , 128275 , 129025 , 129026 , 129029 , 129033 , 129038, 129039,
129040, 129044 , 129283 , 129284 , 129291 , 129539 , 129540 ,129793 ,
129794 , 129798 , 129809 , 129810, 130306 , 130310 , 130311 , 130312 ,
130578
Electrical: Opto-isolated on N2K Can bus
Speed/baudrate:
Connector: M12 male
Cable length: 1.2 meter
Factory default: All above supported PGNs are enabled
Electrical: Opto-isolated on N2K Can bus
Speed/baudrate:
Connector: M12 male
Cable length: 1.2 meter
Factory default: All above supported PGNs are enabled
NMEA0183 Port(IEC61162-1)
Supported Sentences: APB,
BOD, BWC, BWW, DBT, DPT, DTM, GGA, GLL, GSA, GSV, HDG, HDM, HDT, MDA,
MTW, MWD, MWV, RMC, ROT, RSA, VDM, VDO, VDR, VHW, VLW, VTG, XDR, XTE,
ZDA
Electrical:
Output: RS232
Input: RS232 opto-isolated
Baudrate:
Input: Auto detect (up to 115200)
Output: Configurable (factory default 38400)
Factory default: All above supported NMEA0183 are enabled
Electrical:
Output: RS232
Input: RS232 opto-isolated
Baudrate:
Input: Auto detect (up to 115200)
Output: Configurable (factory default 38400)
Factory default: All above supported NMEA0183 are enabled
Fuel Port
Input signal: TTL
Output:
N2K PGN: 127489
NMEA0183 sentence: XDR
Output:
N2K PGN: 127489
NMEA0183 sentence: XDR
Environmental Conditions
Working temperature: -20°C to +55°C
Humidity: 93% ±3% on 40°C
Waterproofing: IPX67
Humidity: 93% ±3% on 40°C
Waterproofing: IPX67
Equipment List
Standard
–

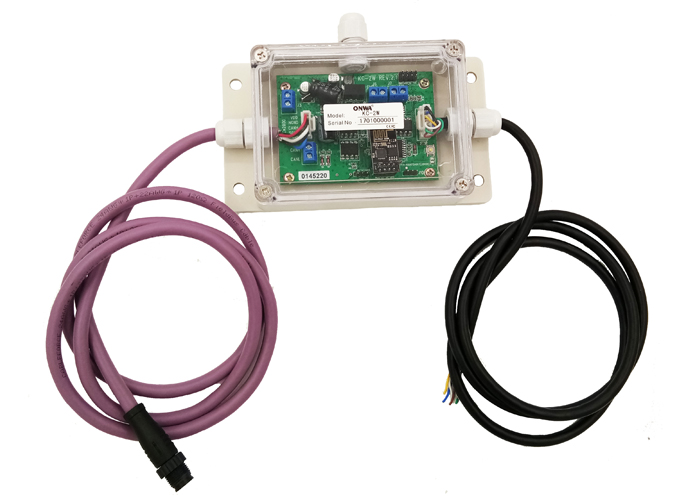

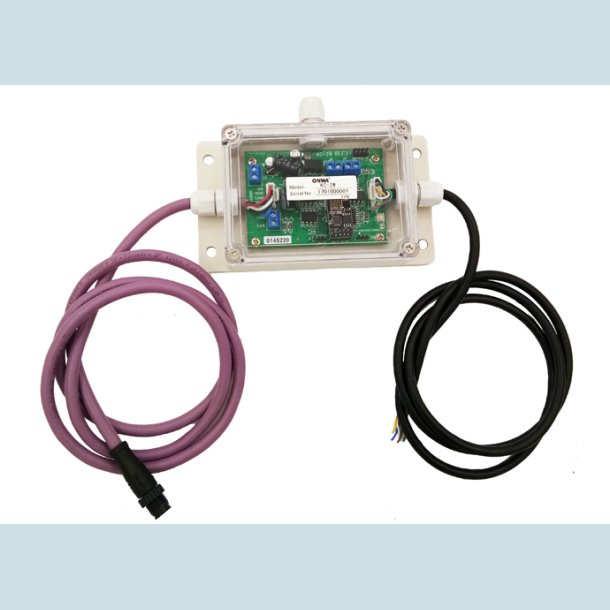

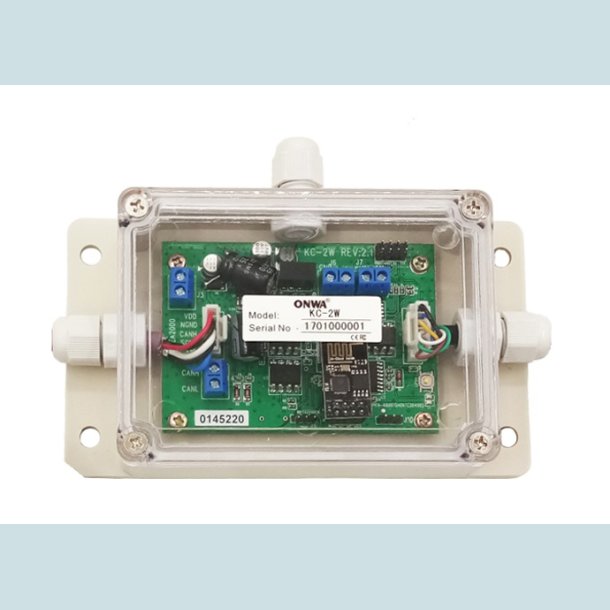

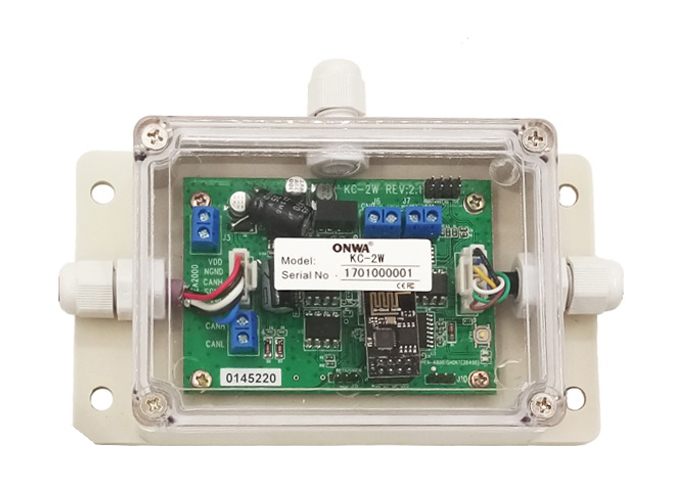

KC-2W main unit (one end attached with 1.2 meters cable with M12 male 5
pins connector (N2K) and the other end 1.2 meters cable with open
wires(NMEA0183))
– Mounting screws X 4 pcs
– Manual (quick installation manual)
– Mounting screws X 4 pcs
– Manual (quick installation manual)
