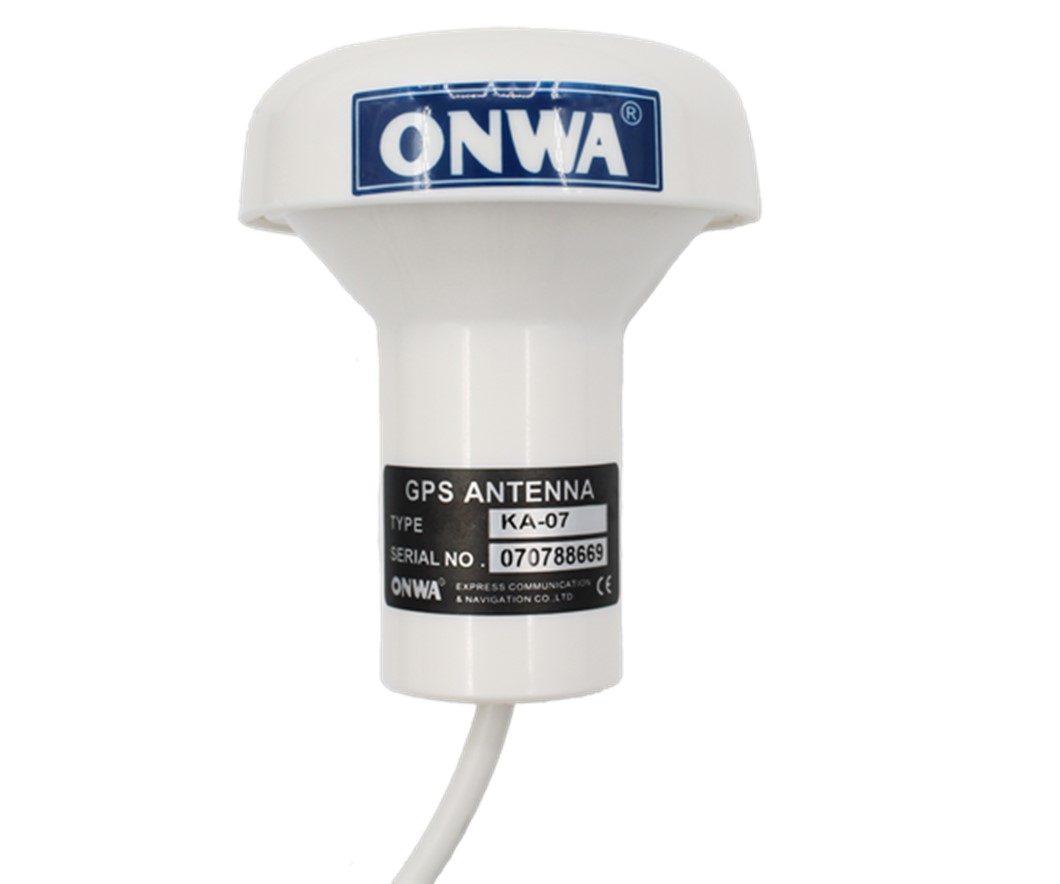

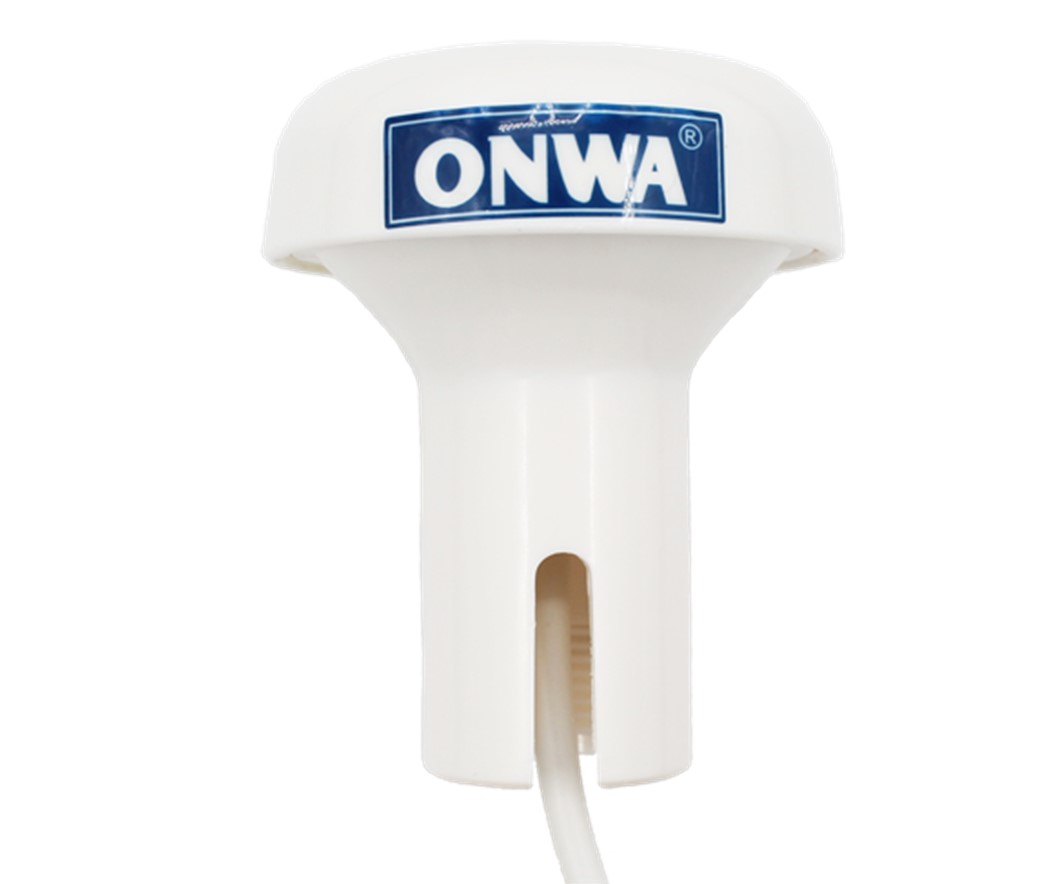

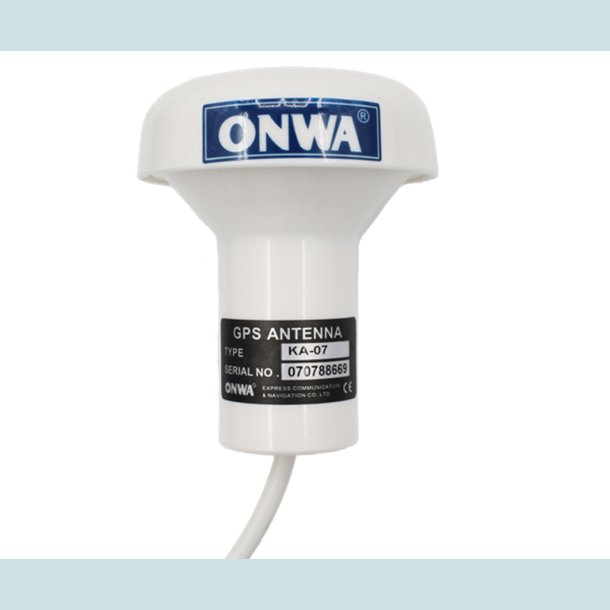

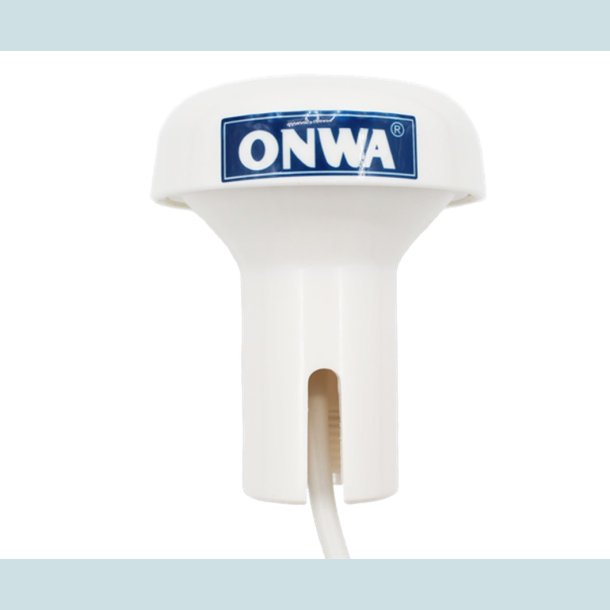

ONWA GPS Antenne, med 10 meter kabel, med BNC stik
Physical:
Enclosure : High compact, corrosion-proof PC (polycarbonate)
resin
Construction : Hermetically sealed, fully waterproof
Dimensions : 90mm(D) X 110mm(H)
Weight : 65g (w/o cable & connector)
Mounting : Pole mount to 3/4” threaded pipe
Cable & Connector:

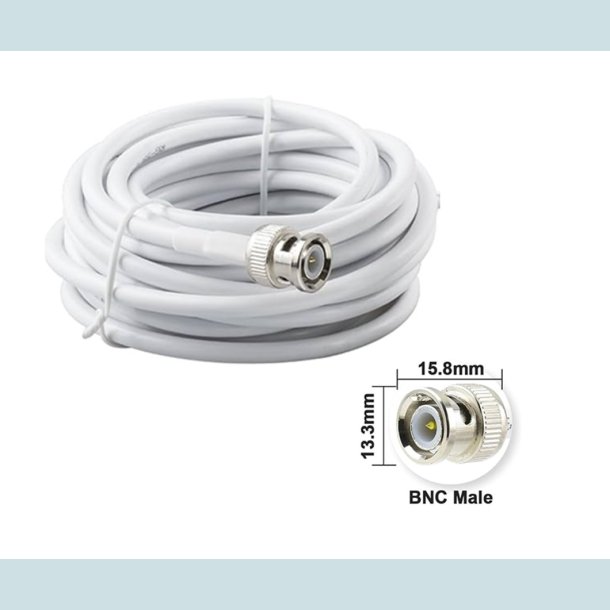

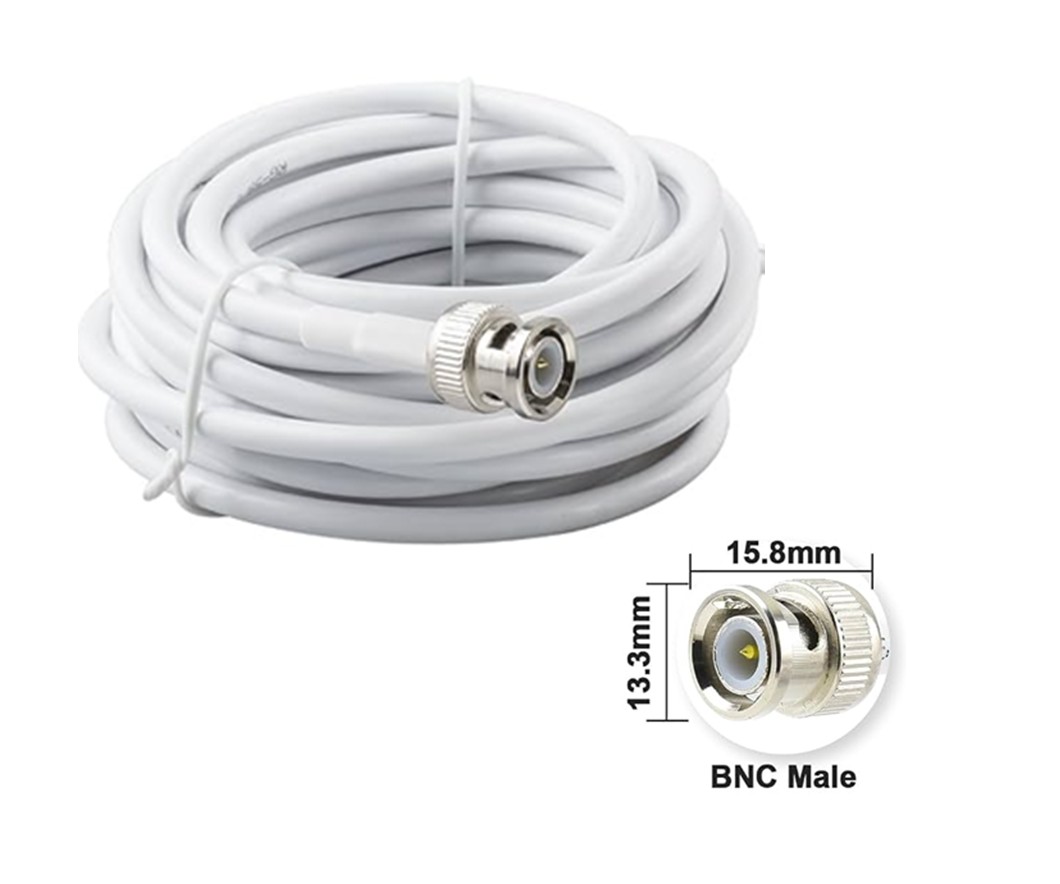

RF cable : 10m RG-59

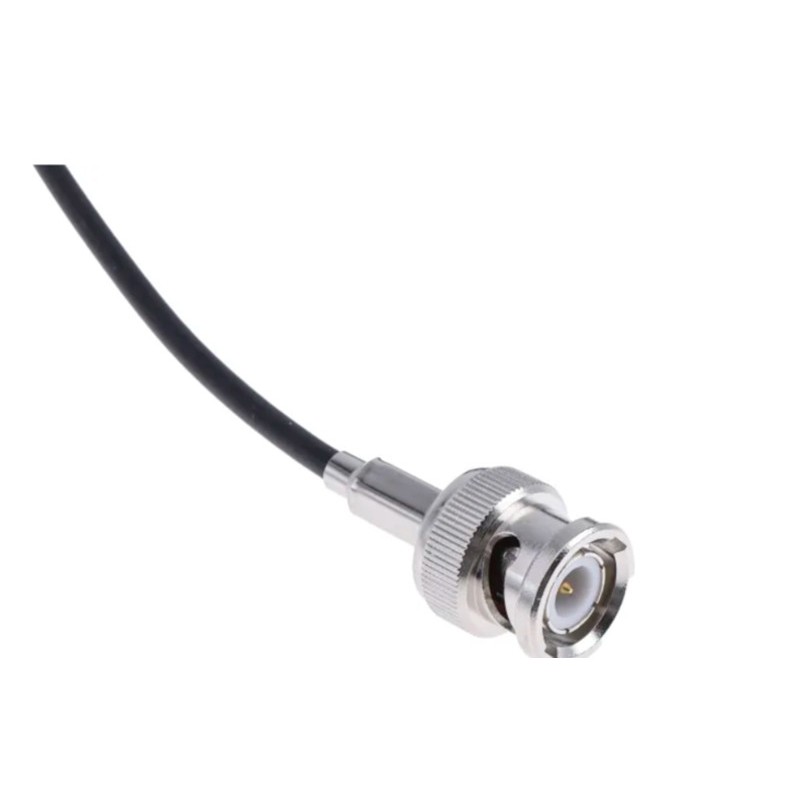

Connector : BNC connector supplied as standard
Environmental:
Operating temperature : -30°C ~ +85°C
Storage temperature : -40°C ~ +90°C
Relative humidity : 95% non-condensing
Waterproof : 100% waterproof
Antenna Element
Center Frequency : 1575.42 Mhz ± 1.023Mhz
Absolute gain zenith : +5dB typical
Absolute gain 10° : -1dB typical
Axial ratio : 3dB max
Output VSWR : 1.5 max
Output impedance : 50 ohm
Low Noise Amplifier
Center Frequency : 1575.42 Mhz
Power gain : 27dB typical
Band width : 2Mhz min.
Noise figure : 1.5 max
Out band attenuation : 20dB min @Fo ±50Mhz
Supply voltage : 3.3 ~ 5.0 VDC
Current consumption : Maximum 12mA
VSWR : 2.0 max
Output impedance : 50 ohm
Overall Performance (Antenna Element, LNA and Cable)
Center frequency : 1575.42 Mhz
Gain : 26 dB min
Noise figure : 2.0 max
Band width : 2 Mhz min
Axial ratio : 3 dB max
VSWR : 2.0 max
Output impedance : 50 ohm
