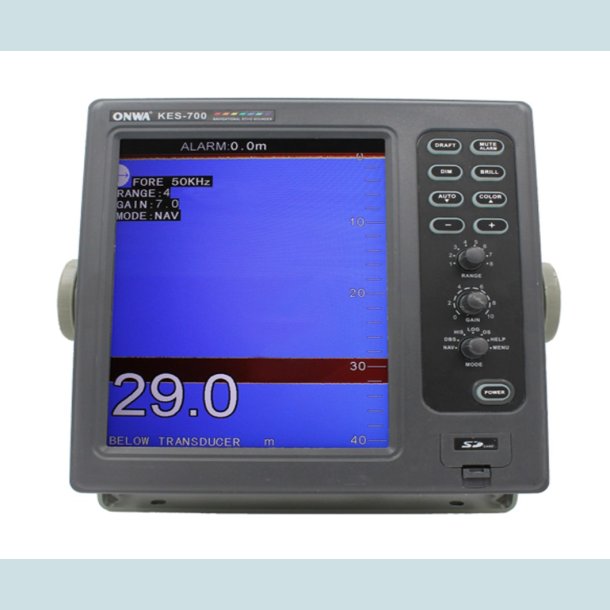

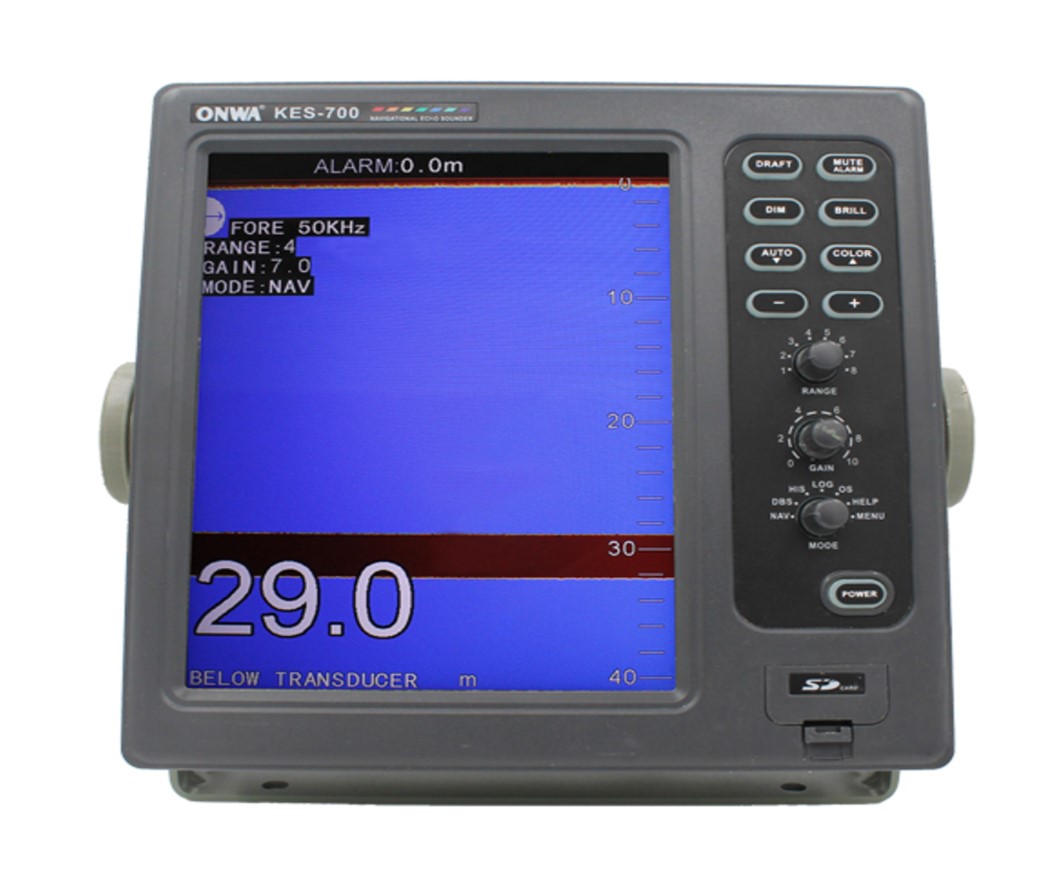

ONWA 10.4 Farve TFT 200KHz. 600W Ekkolod, Med Transducer
Onwa MarineKES-700-200
Varen er ikke på lager, leveringstid ca. 1 til 2 uger
13.840,00 DKK
(inkl. moms)ONWA 10.4” Farve TFT LCD 50KHz. 600W Ekkolod
Producent:
Omwa Marine
Model: KES-700
Navigationsekkolod med hukommelseslagring og
genkaldelse af dybdedata.
Med indbygget Fish Finder system.
Inkl.: Transducer TMM60-50 / 50KHz
Se Brochure: Download
Se Manual: DownloadSpecifikationer
|

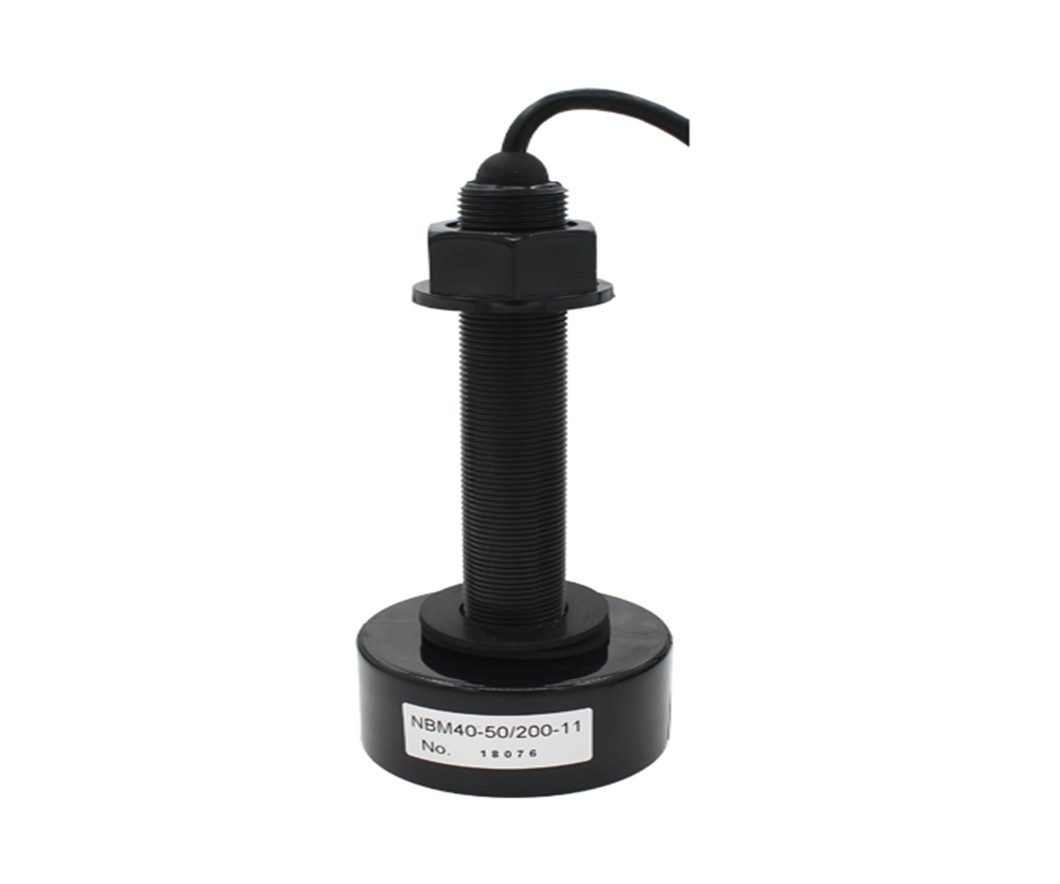

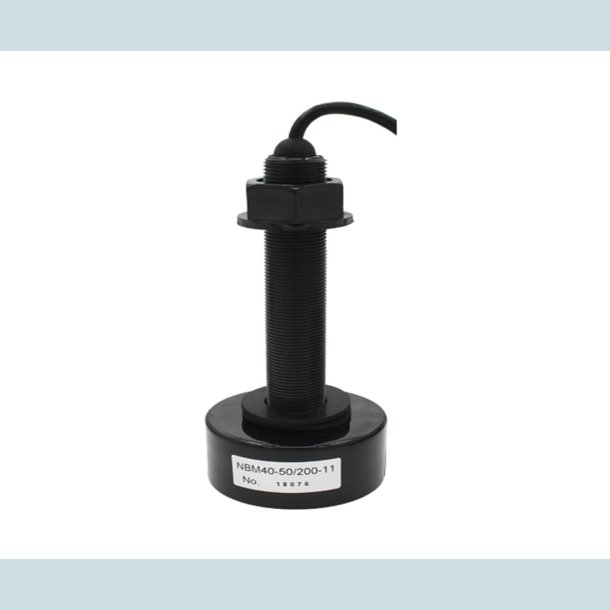

Transducer TMM60-50 | |
|
1.Frequency |
Frequency: 50 kHz |
|
2. Power |
300W nominal |
|
3. Beam Angle |
13x44° |
|
4. Cable |
10 meters |
|
5. Installation |
Thru-Hull |
|
6. Material |
Rubber |
General
Display 10.4-inch Color TFT LCD, 800 x 600 pixels
Display Area 228.4 mm X 175.4 mm
Basic Range Meters : 5/10/20/40/100/200/400/800
Feet : 15/30/60/120/300/600/1500/2500
Fathoms : 3/5/10/20/50/100/200/400
Default settings; it could be customized for use w/o range 3 and 6
Accuracy
+/- 2.5% on any range
Minimum Range 1.5 m (200 KHz), 1.5 m (50 KHz)
Draft
Draft 0 to 30 m in 0.1 m steps, default 0 m
Pulse Repetition Rate (PRR)
|
Depth (m) |
5 |
10 |
20 |
40 |
80 |
150 |
200 |
300 |
600 |
|
Pulse-Length (ms) |
0.1 |
0.1 |
0.1 |
0.2 |
0.4 |
0.75 |
1 |
1.5 |
3 |
|
PRR (pulse/min) |
750 |
750 |
750 |
375 |
187.5 |
100 |
75 |
60 |
60 |
Display Mode NAV : Basic echo presentation with the depth below transducer
DBS : Echo presentation with the depth below sea surface (or keel)
HISTRY : Historical Echo presentation with the depth
LOGBOOK : Echo presentation with the pop-up table showing
Time, Depth and L/L* data memorized at preset interval
OS DATA : Echo presentation with the pop-up table of present
navigational data; L/L*, course*, speed*, time, depth
HELP : Echo presentation with the help menu and note
MENU : Echo presentation with the user menu.
Picture Advance Speed Slow mode 15 minutes or more
Fast Mode Picture advance Range
Range (m): 5/10/20/40/100/200/400/800
Interval (min):1.8/1.8/1.8/8/8/20/30/30
User Setting Gain, Range, Alarm, Draft, Brilliance, Dimmer, Color, Auto
Auto Set Mode Gain, range and clutter will be automatically adjusted.
Alarm
Shallow water (default 20 m), Bottom lost, Power drop
Logbook Display Depth, Internal clock, L/L* 1 hour at 5 sec Interval, 12 hours at
1 minute interval and 24 hours at 2 minutes interval.
*: External navigational sensor required.
Transmit Frequency 50 kHz or 200 kHz, specify when ordering
Output Power 600 Wrms
Interface
Serial Input Data IEC61162-1, current loop; 1 port
RMA: L/L, ground track speed, Track
RMC: L/L(GPS), ground track speed, Track, Time
GLL: L/L
GGA: L/L
VTG: Ground track speed,
Track (True/Magnetic selected on menu)
ZDA: Time
Serial Output Data IEC61162-1, output period:1 sec.;3 outputs/1 port
SDDPT: Depth (m), Draft (m)
SDDBT: Depth (ft, m, fa) below transducer
SDDBS: Depth (ft, m, fa) below sea surface
Alarm (Depth, Power) Contact closure signal
Power
Supply
DC 11-40V : 3A Max
Environmental
Conditions
Ambient Temperature -15°C to +55°C
Relative Humidity 95% or less at 40°C
Waterproofing Display unit: IPX5
EMC Emission IEC 60945 Ver.3
Equipment
List
Display unit
Quick Manual
Transducer (specify when ordering)
Standard Accessories Pack
