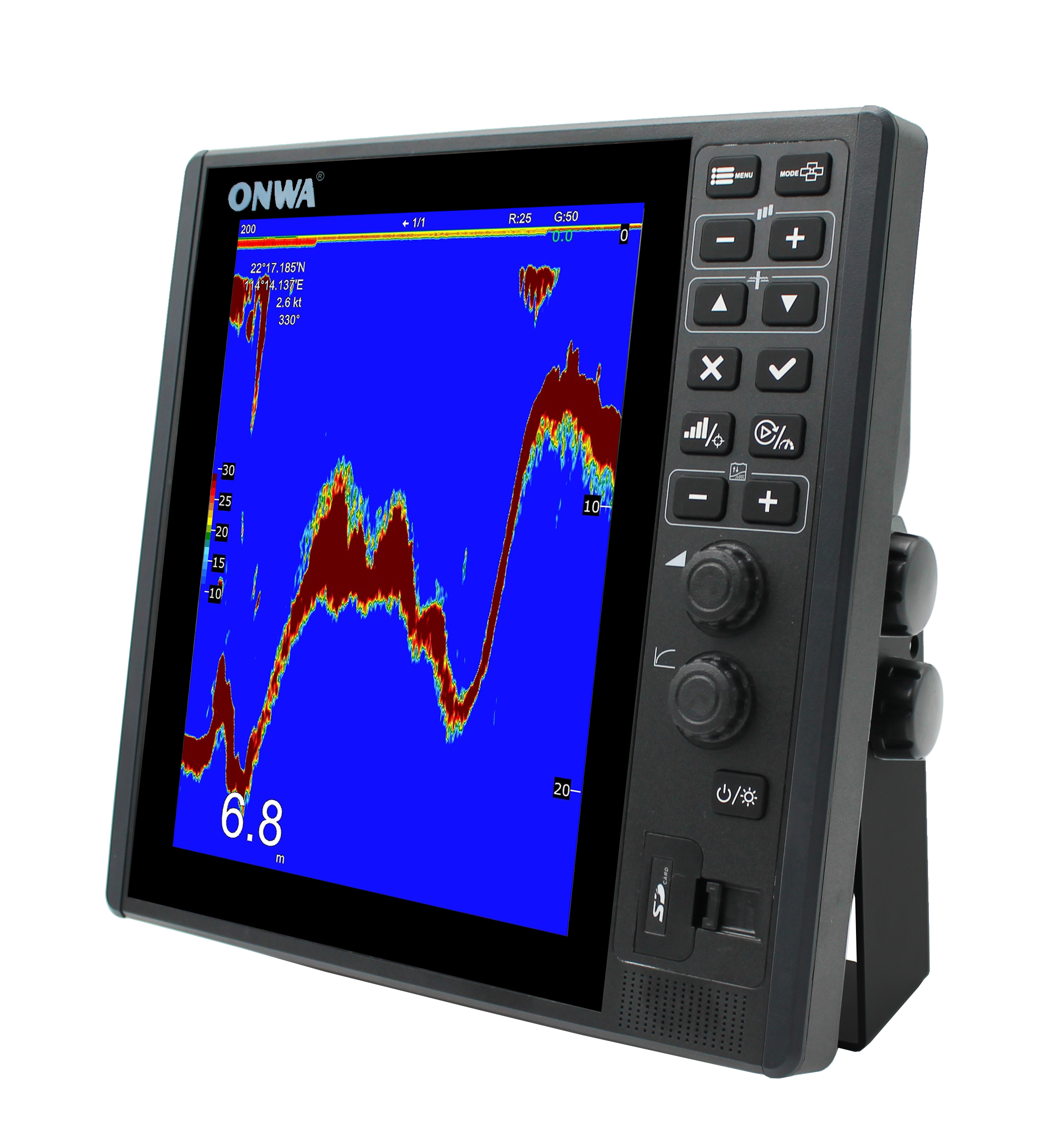

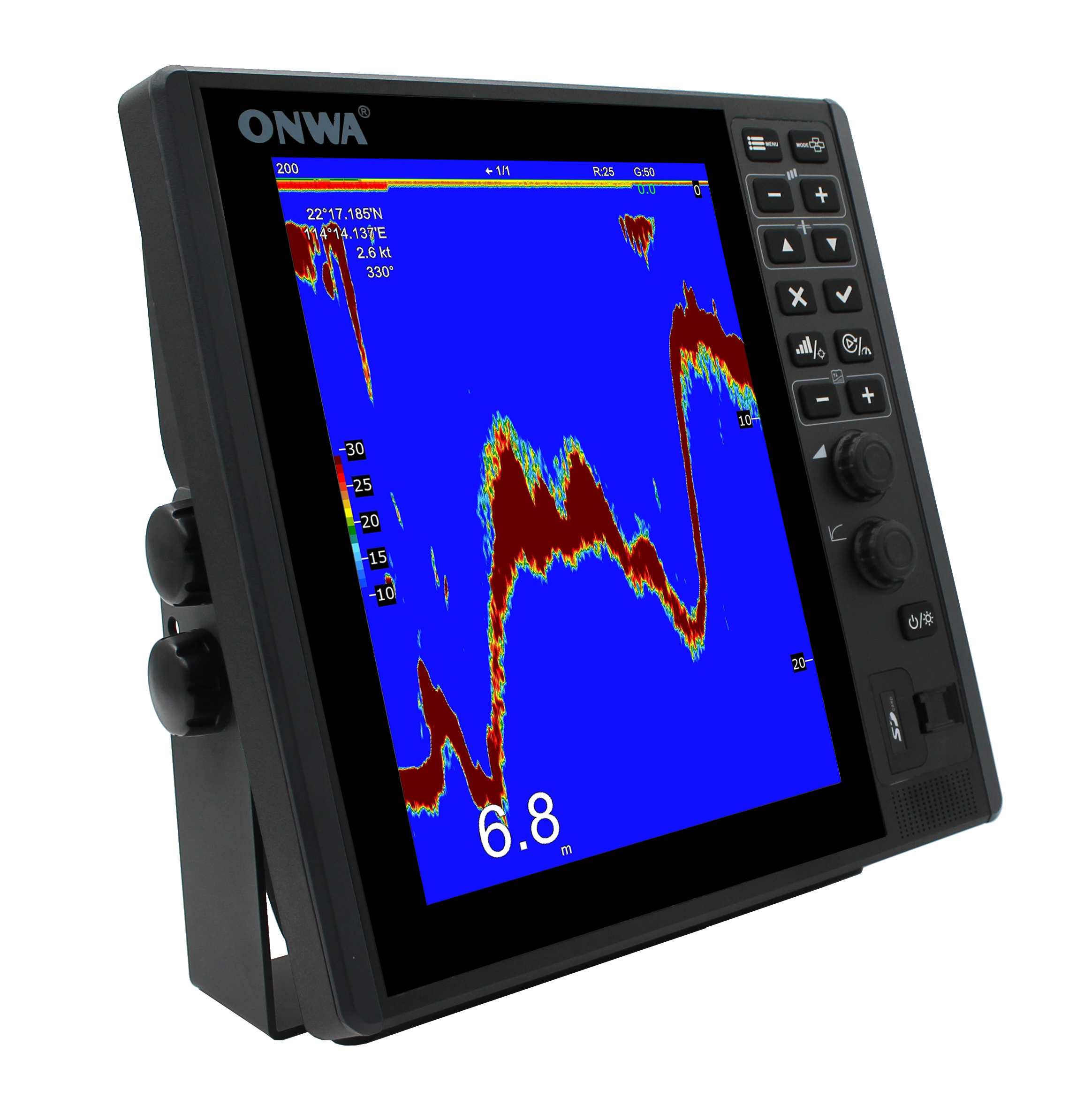

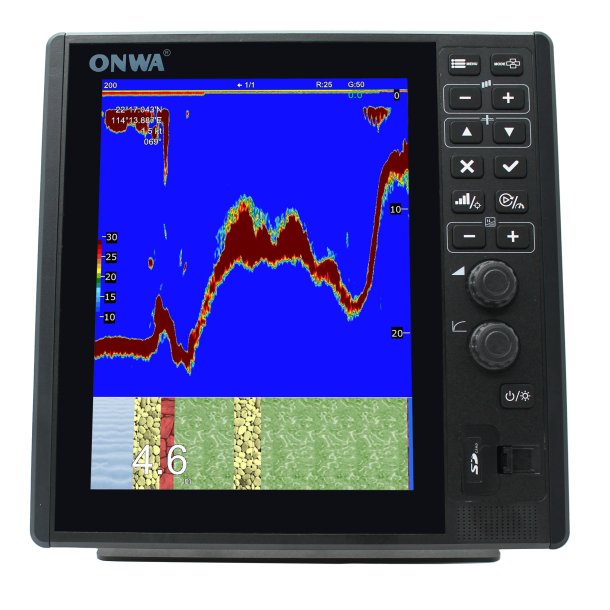

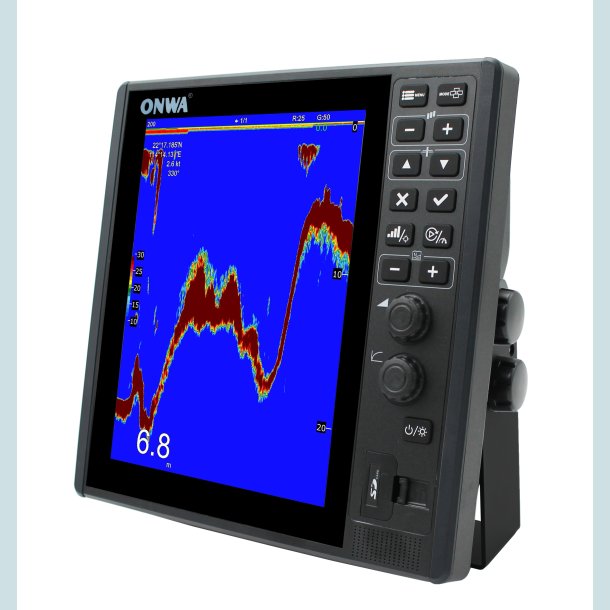

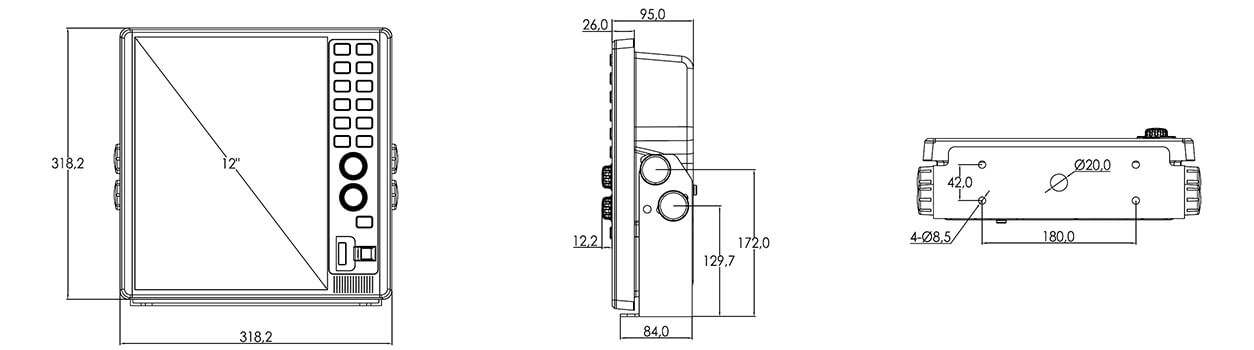

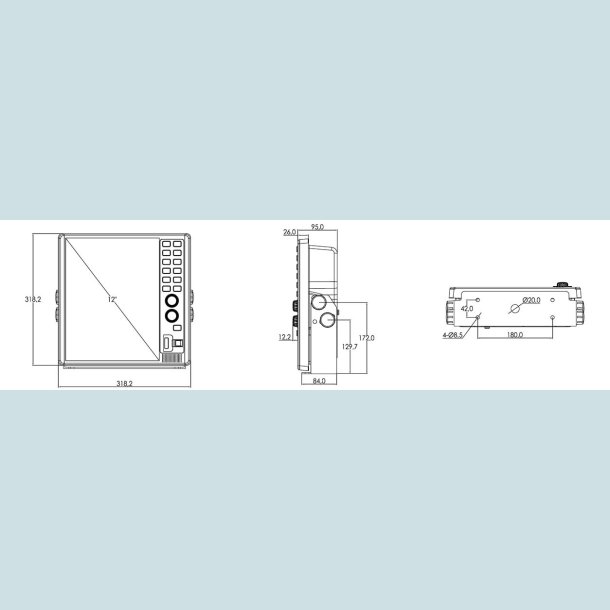

ONWA 12.1” Farve TFT LCD 2 KW. / 50KHz. Ekkolod
Producent: Omwa Marine
Model: KFish-12

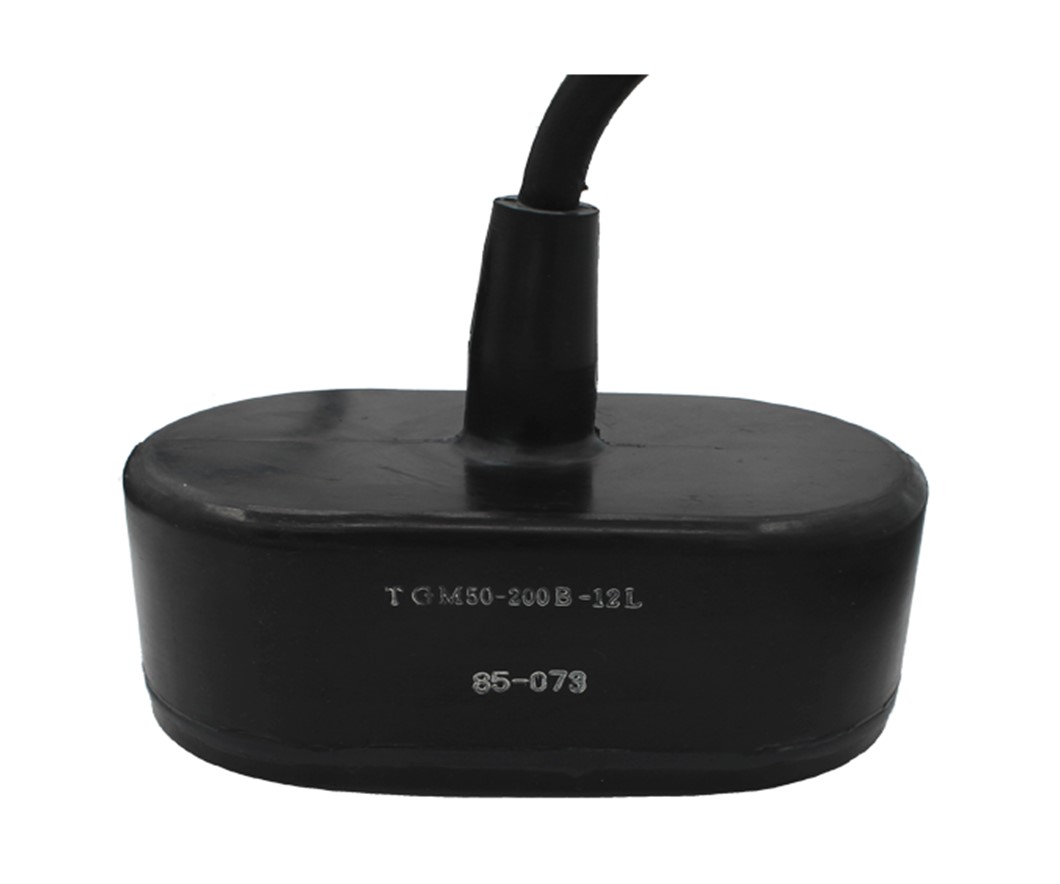

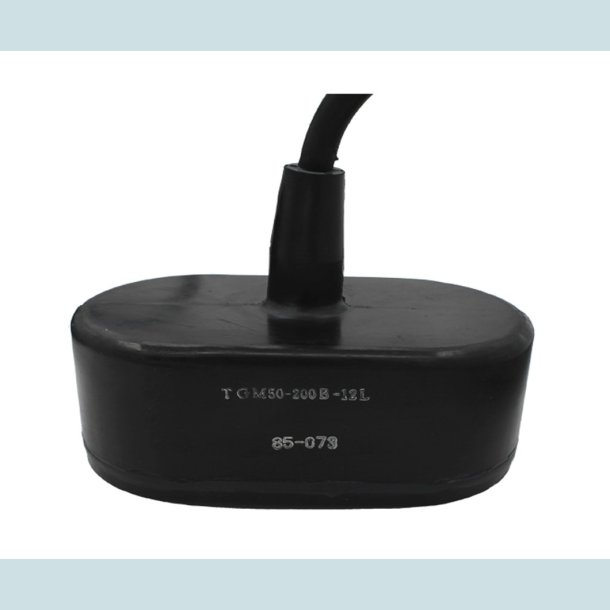

Inkl.: Transducer TGM60-50A-12L 50 KHz.
Se Brochure: KFISH-12_Brochure
- Brugervenligt design til forenklet betjening
- En bred vifte af visningstilstande: A-Scope, bundlåsudvidelse, markørzoom og unik bundzoomsdisplay
- 16-farves præsentation (inklusive baggrund) på en 12.1 ″
diagonal TFT LCD-skærm, der giver en levende præsentation af
undervandsforhold
- AUTO-funktionen tillader operationer uden opsyn af
rækkevidde og forstærkning. Område skala og forstærkning ændres
automatisk, så bunden vises i rødbrun eller rød på skærmens nederste
halvdel.
- Ekkolods lydfunktion genererer fisketone, når der er fisk under båden.
- Automatisk måling af fiskestørrelse til at fortælle dig størrelsen på fisk.
- A-Scope skærm giver fremragende diskrimination af bundfisk, der er afgørende for bundtrawler og hummer / krabbe-plotter.
- Alarmer: fisk, bund, vandtemperatur (kræver passende sensor)
- Otte pulslængder for fremragende ydelse på både lavt og dybt område
Specifikationer
Transducer
| TGM60-50A-12L | |
| 1. Frequency | Frequency: 50 kHz |
| 2. Power | 2 KW. nominal |
| 3. Beam Angle | 13x44° |
| 4. Cable | 12 meters |
| 5. Installation | Thru-Hull |
| 6. Material | Plast/Gummi |
General
Display
12.1-inch Color TFT LCD
Echo Color
16 colors (including background color) according to echo intensity.
The background color is selectable from blue, light blue, white and black
The background color is selectable from blue, light blue, white and black
Basic Range
Meters 5/10/20/40/80/150/300/600/1000/2000
Feet 15/30/60/120/200/400/1000/2000/3000/6000
Fathoms 3/5/10/20/40/80/150/300/600/1000
Passi/Braza 3/5/20/40/80/160/350/600/1000
*The basic ranges can be changed on the system menu.
Feet 15/30/60/120/200/400/1000/2000/3000/6000
Fathoms 3/5/10/20/40/80/150/300/600/1000
Passi/Braza 3/5/20/40/80/160/350/600/1000
*The basic ranges can be changed on the system menu.
Range Shift
Up to 1000 meters (3000 feet, 600 fathoms, 600 passi/braza)
Zoom Range
Times 2,3,4 and 6 ranges
Bottom Lock Expansion Range
5/10 /20 meters, 10/20/40 feet, 2/5/10 fathoms , 2/5/10 passi/braza
Auto Mode
Automatic adjustment of range and gain
Display Mode
High Frequency (200K),
Low Frequency (50K),
Zoom (200K and 50K zoom) and
A-scope Display
Low Frequency (50K),
Zoom (200K and 50K zoom) and
A-scope Display
Zoom Display
Marker Zoom,
Bottom Zoom and
Bottom-lock Expansion
Bottom Zoom and
Bottom-lock Expansion
Display Advance Speed
Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1
TX Frequency
50 and 200 kHz (Dual Frequency)
**(No Dual Frequency Display Mode)
**(No Dual Frequency Display Mode)
Power Output
2kW, 2000W RMS
Pulse-length/TX rate
| Display End Depth (m) | 5 | 10 | 20 | 40 | 80 | 150 | 300 | 600 | 1000 | 2000 |
| Pulse-Length 200K(µs) | 100 | 100 | 100 | 200 | 400 | 750 | 1000 | 1500 | 3000 | 5000 |
| Pulse-Length 50K(µs) | 100 | 100 | 100 | 200 | 400 | 750 | 1000 | 1500 | 3000 | 5000 |
| TX Rate(pulse/min) | 750 | 750 | 750 | 375 | 188 | 107 | 50 | 30 | 20 | 10 |
| TX period(millisecond) | 80 | 80 | 80 | 160 | 320 | 560 | 1200 | 2000 | 3000 | 6000 |
Interference Rejecter
Rejects unwanted signals by comparing last and present echoes in strength.
Alarm
Fish and Bottom alarms,
Temperature alarm (sensor required)
Temperature alarm (sensor required)
NMEA0183 Sentence Supported
Input: RMA,RMC,GLL,GGA,VTG,ZDA,HEV
Output: SDDBS, SDDBT, SDDPT
POWAB/*only hardness output ONWA format*/
SDSBH/*only hardness output ONWA format*/
PHDX/*only hardness output HONDEX format*/
PKODS/*only hardness output KODEN format*/
Output: SDDBS, SDDBT, SDDPT
POWAB/*only hardness output ONWA format*/
SDSBH/*only hardness output ONWA format*/
PHDX/*only hardness output HONDEX format*/
PKODS/*only hardness output KODEN format*/
NMEA2000 Sentence Supported
Input PGN:126992,129539,129540,129025,129026
129092,129033
Output PGN: 129259,128267
129092,129033
Output PGN: 129259,128267
Other Options
HDMI, USB and Ethernet Port (Specify when ordering)
Power Supply
12 – 24 VDC, 2.5A max at 12VDC
Environmental Conditions
Ambient Temperature
0°C to +50°C
Relative Humidity
85% at 40°C
Vibration
± 1mm ±10%, 2(5) to 13.2 Hz,
Maximum Acceleration 7m/s^2, 13.2 to 100 Hz
Maximum Acceleration 7m/s^2, 13.2 to 100 Hz
Water proofing
Display unit (Front Panel): IPX7
Equipment List
Display unit
Transducer (specify when ordering)
Mounting Brackets
Quick Manual
Standard Accessories Pack
Transducer (specify when ordering)
Mounting Brackets
Quick Manual
Standard Accessories Pack
