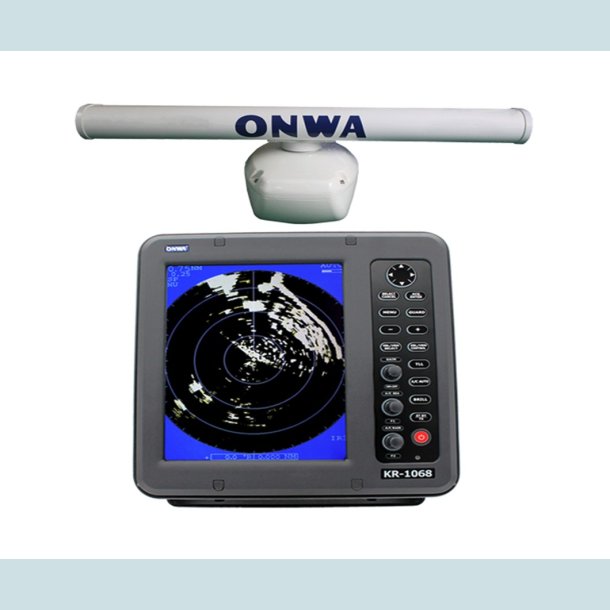

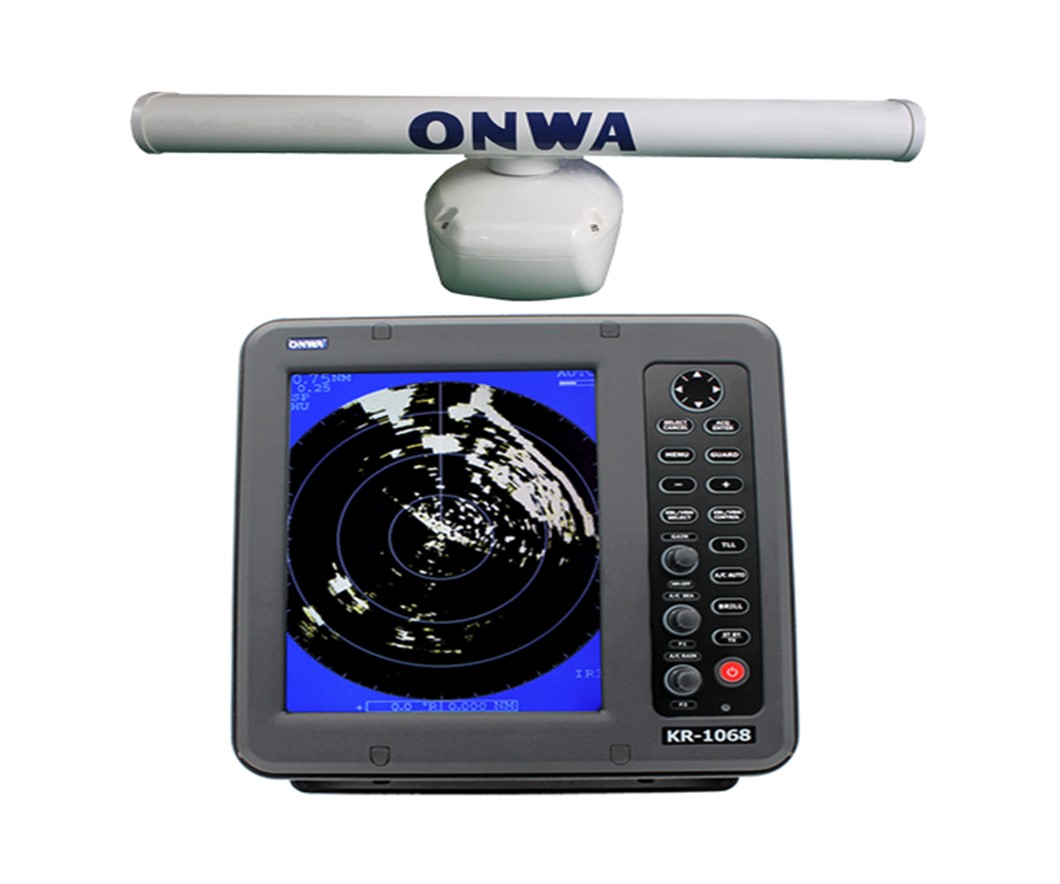

ONWA 9.7 64NM LCD Marine Radar /AIS og ARPA Function

ONWA  9.7” 64NM LCD Marine Radar /med AIS Display og ARPA Function

9.7” Display Unit
Inkl. 6KW. Open-Array Antenna 1.2M. med 15M kabel

Se Brochure: KR-1068 Brochure

• The System Software can be upgraded via USB
• AIS Display Function
• Multi color selection for target and background
• Rugged die-cast and waterproof housing
• “Target Tracking” (TT) function, can track and trace up to 30 targets
• User-Programmable function keys
• Automatic optimization of radar picture
• Newly Enhanced performance
• Head-up, Course-up and North up representation mode
• Economy Mode, Guard Zone Alarm and Watch Mode

• Specifikation

• ANTENNA RADIATOR
  1. Type	120cm hybrid array
  2. Length and Rotation speed	Open array 120cm (KRA-2004) 24RPM
  3. Wind load	Relative wind 100 knots
  4. Beamwidth	KRA-2004: Hor: 1.9° Vert: 22°
  RF TRANSCEIVER
  1. Frequency	9410 +/-30MHz (X-band)
  2. Pulselength PRR	0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm) 0.3µ s/1200 Hz(1.5*, 2, 3 nm) 0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48**, 64**nm) * Pulselength & PRR for 1.5 and 3nm ranges can be selected in the menu ** KR-1068
  3. Peak Output Power	6KW nominal
  4. Mixer and Local Oscillator	Microwave Integrated Circuit
  5. IF	60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s)
  6. Noise Figure	10dB nominal
  ENVIRONMENT
  Temperature	Display unit: -15 to +55°C Antenna unit: -25 to +70°C
  POWER SUPPLY
  10.5 VDC to 40.0 VDC, 60W (30W in economy mode)
  DISPLAY UNIT
  1. Type	10″ LED backlight, 32-bit TFT Color LCD Display 1024(V) x 768(H) dots
  2. Display Modes	Head-up, Course-up*, North-up*, True Motion** * Heading input required ** Heading and speed inputs required
  3. Range Scale (nm)	Range: 0.125, 0.25, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36,48**,64**,72** Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12
  4. Echo Trail	Interval: 15s,30s,1min,3mins,6mins,15mins,30mins or continuous
  5. Interface(NMEA 0183 format)	any talker (menu selection) input $–APB,$–BWX,$–BWR,$–DBK,$–DBS,$–DBT,$–DPT, $–GGA,$–GLC,$–GLL,$–GTD,$–HDG,$–HDW,$–HDT, $–MDA,$–MTW,$–RMA,$–RMB,$–RMC,$–VTG,$–XTE,
  6. AIS Display	Acquisition : AIS vessels or ATON Tracking : Auto Display : Vessel Name, MMSI, Call sign, Range/Bearing, L/L Speed/Course, ROT, CPA/TCPA (AIS data input required)
  7. Target Tracking Function	Acquisition : 20 manual or 10 auto + 10 manual Tracking : Auto Display : Speed, Course, Range/Bearing and CPA/TCPA
  EQUIPMENT LIST
  Display unit (KRD-1007): 1 unit Open Array Unit KRA-4001 1 unit RA12(120cm) Antenna Cable (KRC-006-15/20/30) 15m /20m /30m (Specify when ordering) Power Cable (KRP-002-0), 3m Standard Spare Parts and installation materials : 1 set

•
